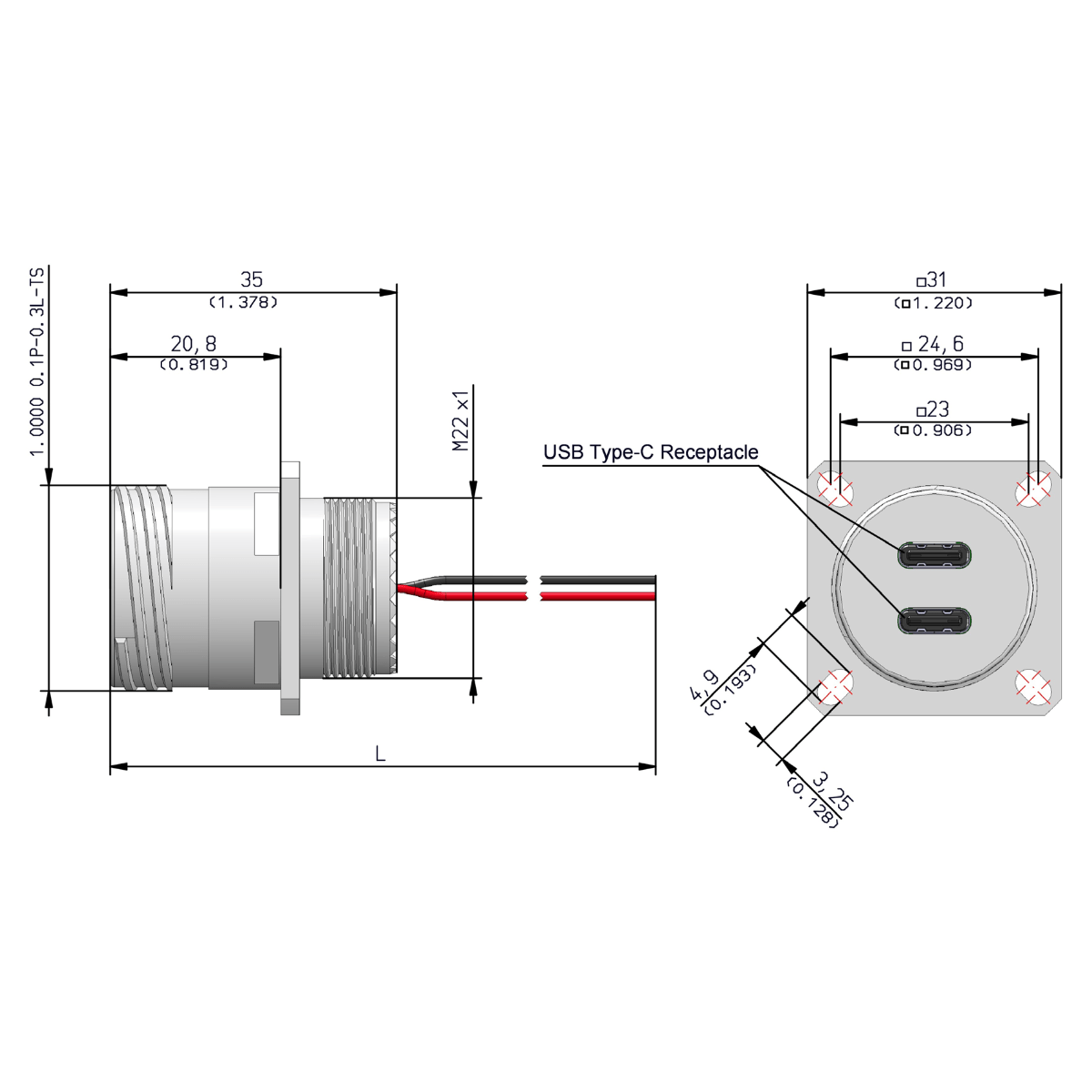

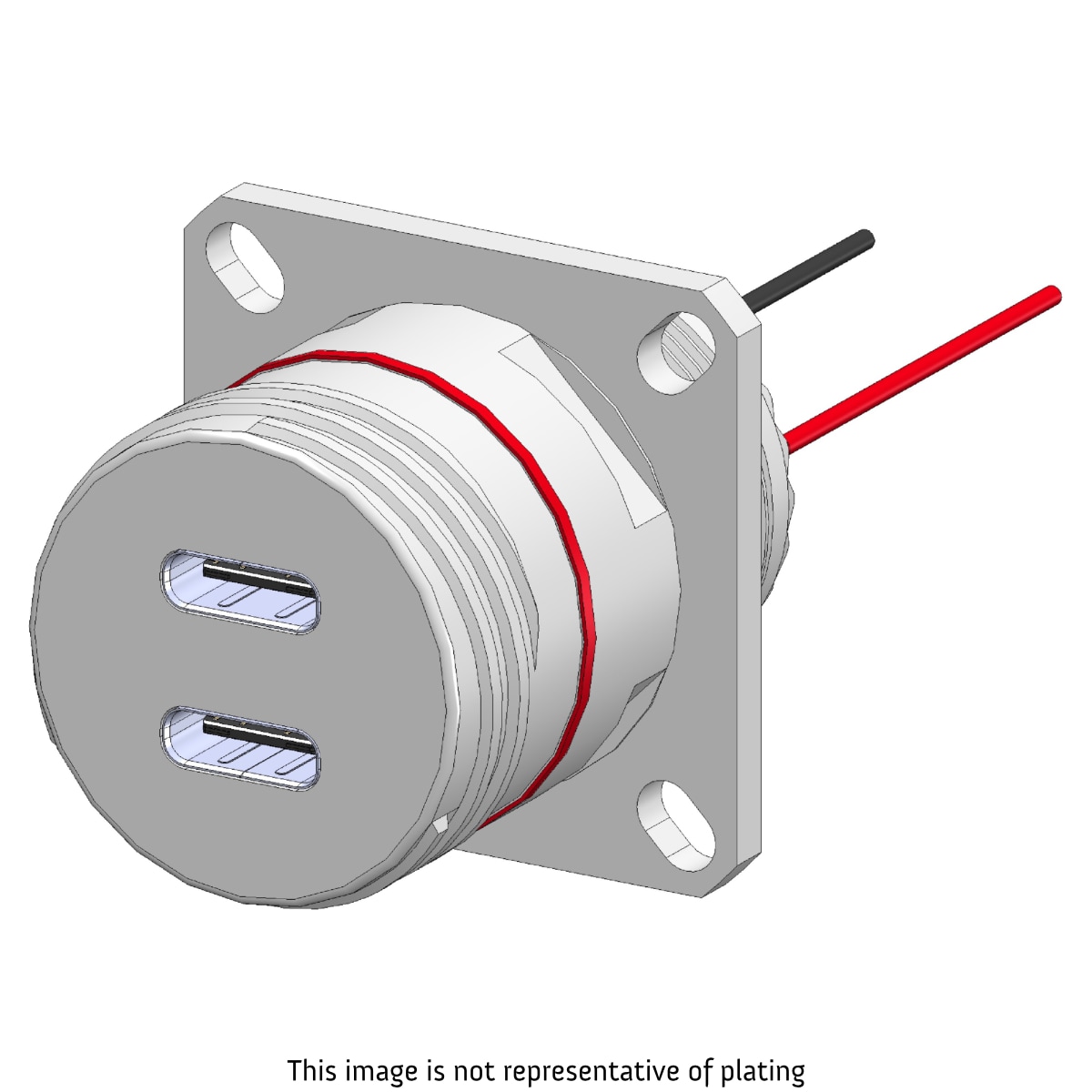

EMCA Connector Solutions Dual USB-C Square Flange Receptacle for Power Supply, Shell Size 15, Olive Drab Cadmium Plating, 'N' Keyway, '0' Orientation, 500mm Wire Length.
Features
- Robust and Ruggedised Design, built for Reliability in Harsh Environments
Applications
Applications include making internal USB connections accessible outside enclosures or cabinets. Data and Power supply, as well as charging.
D+/D-:
Pins A7 & B7 and A6 & B6 Connected
Manufacturer:
EMCA Connector Solutions
USB C Shell:
Nickel Plated
Wire Length:
500 mm
Wire Type:
FLRY: 1 mm²
Connector Shell Style:
Square Flange Receptacle
Connector Series:
D38999 Series III
Voltage Rating:
20 V (V_BUS)
Current Rating:
5 A (V_BUS)
Shell Size:
15
Finish:
Olive Drab Cadmium
Electrically Conductive:
Yes
Temperature Rating:
-40°C to +85°C
Mating Cycles:
> 10,000
